PCM/BMS 4S Li-ion 14,4V 40Ah

Name: PCM/BMS 4S Li-ion 14,4V 40Ah
Brand: Xcell
SKU: PCM4S40A
Price: 3.2 EUR
Availability: InStock

€3.200

Tax included

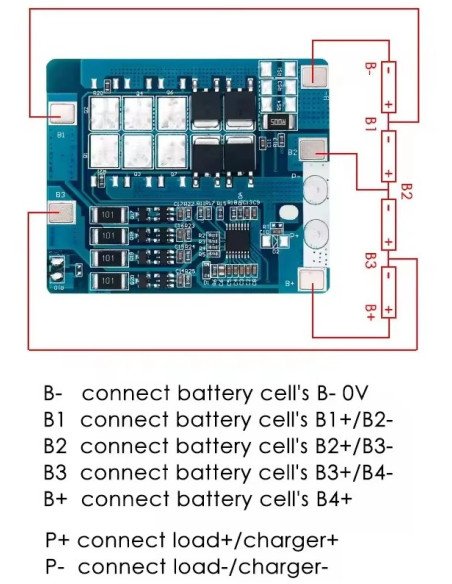

For lithium-ion (Li-ION) battery pack, 4 cells. 4S with balancing system. Has an external temperature thermistor.

Technical data:

Discharge current: 40A
Maximum peak current: 80A
Charging voltage: 16.8V
Maximum charging current: 7A
Maximum single cell voltage: 4.20 ± 0.05 V
Balancing voltage on cell: 4.08 ± 0.05 V
Balance current: 20 ± 5mA
Minimum voltage on the cell: 2.55 ± 0.08 V
Nominal discharge on cell: 2.9 ± 0.1 V
Operation delay: 15mS
Standby discharge : ≤10uA
Size: 47 x 57 x 4mm
