- Manufacturer
- Xcell
- Chemistry
- Lithium-ion
- Voltage
- 14.4 V
- Package
- 1 pcs in packing
- PCM protection
- 4 cells
- Current
- 4 A
- For battery packs
- pcm
- Country of origin
- China

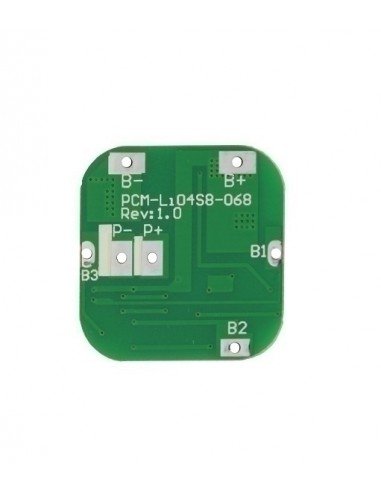

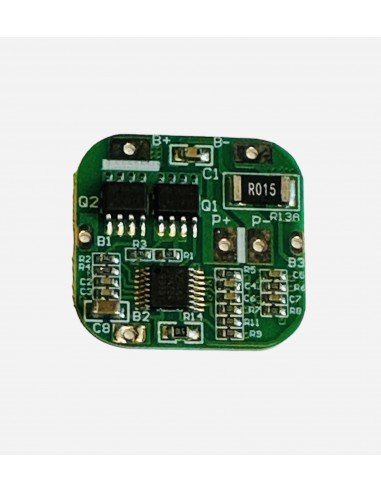

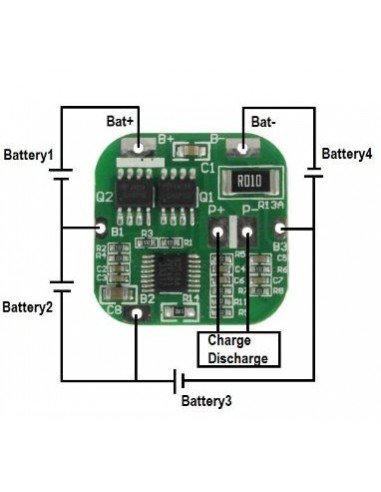

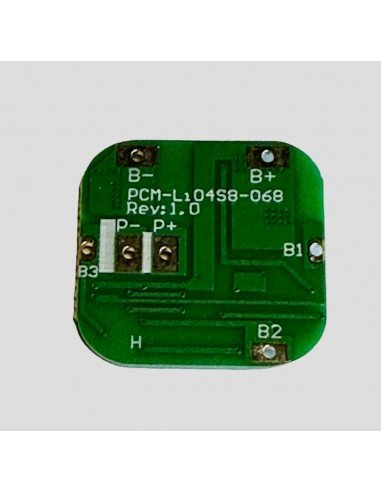

PCM/BMS Li-ion for 4S cell 4Ah
Charging voltage DC 16.8V CC/CV
Single cell balancing current /25mAh
Current consumption per cell ≤50μA
Maximum continuous charging current 4A
Maximum continuous discharge current 4A
The voltage that turns the board on is 4.35V±0.025V
Delay time 50-150S
The voltage that turns the board on is 2.4V±0.08V
Delay time 10-300mS
Board shutdown voltage 3.0V±0.1V
The voltage that turns on the board is 0.15-0.025V
Delay time 5-20mS
Automatic return
Short circuit protection
Delay time 200-500uS
Automatic return
Internal resistance ≤60mΩ
Working temperature -40~+85℃
Storage temperature -40~+125℃
Dimensions 26x26mm
