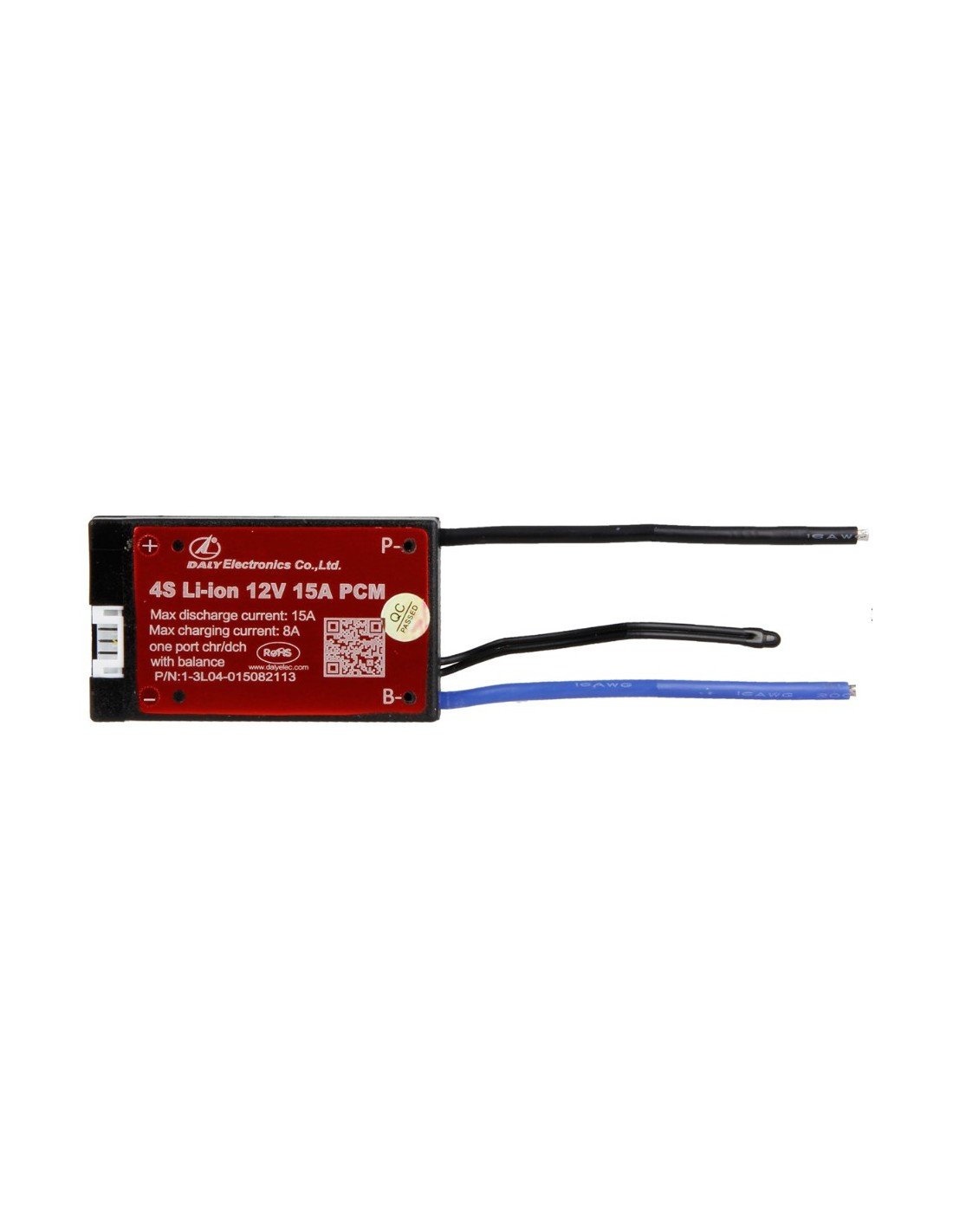

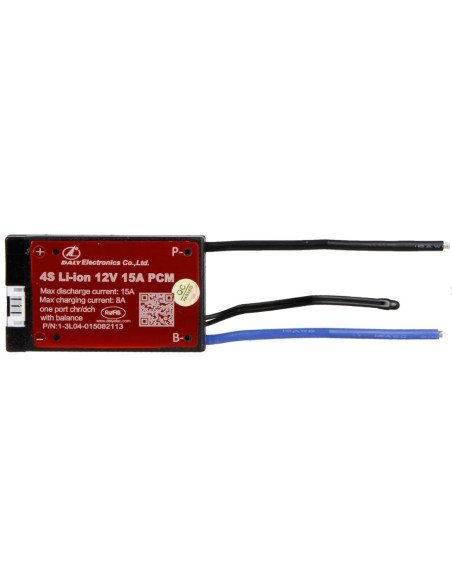

PCM/BMS 4S Li-ion 14,4V 15Ah

In stock
€11.97
Tax included From selected delivery, within 2-4 days

For lithium-ion (Li-ION) battery pack, 4 cells. Consistently. 4S with balancing system. Has an external temperature thermistor. If the temperature rises too high, the power is cut off.

Voltage difference less than 0.05V, resistance difference less than 5mΩ, capacity difference less than 30mAh.

Technical data:

Overload protection: 4.25V ± 0.05V

Discharge protection: 2.8V ± 0.1V

Balancing voltage for one element: 4.2V±0.05V

Maximum continuous charging current: 8A

Maximum continuous discharge current: 15A

Overcurrent protection (peak): 30±5A

PCM/BMS current consumption: max. 100 µA

Short circuit protection

Dimensions: 59mm x 35mm x 9mm

Weight: 34g

Techniniai duomenys

Manufacturer
Xcell
Chemistry
Lithium-ion
Lithium polymer (Li-Po)
Voltage
14.4 V
Package
1 pcs in packing
PCM protection
4 cells
Current
15 A
For battery packs
pcm
Country of origin
China
PCM4S15
