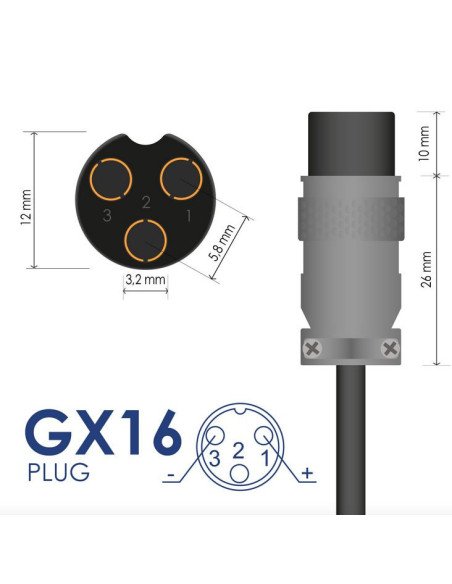

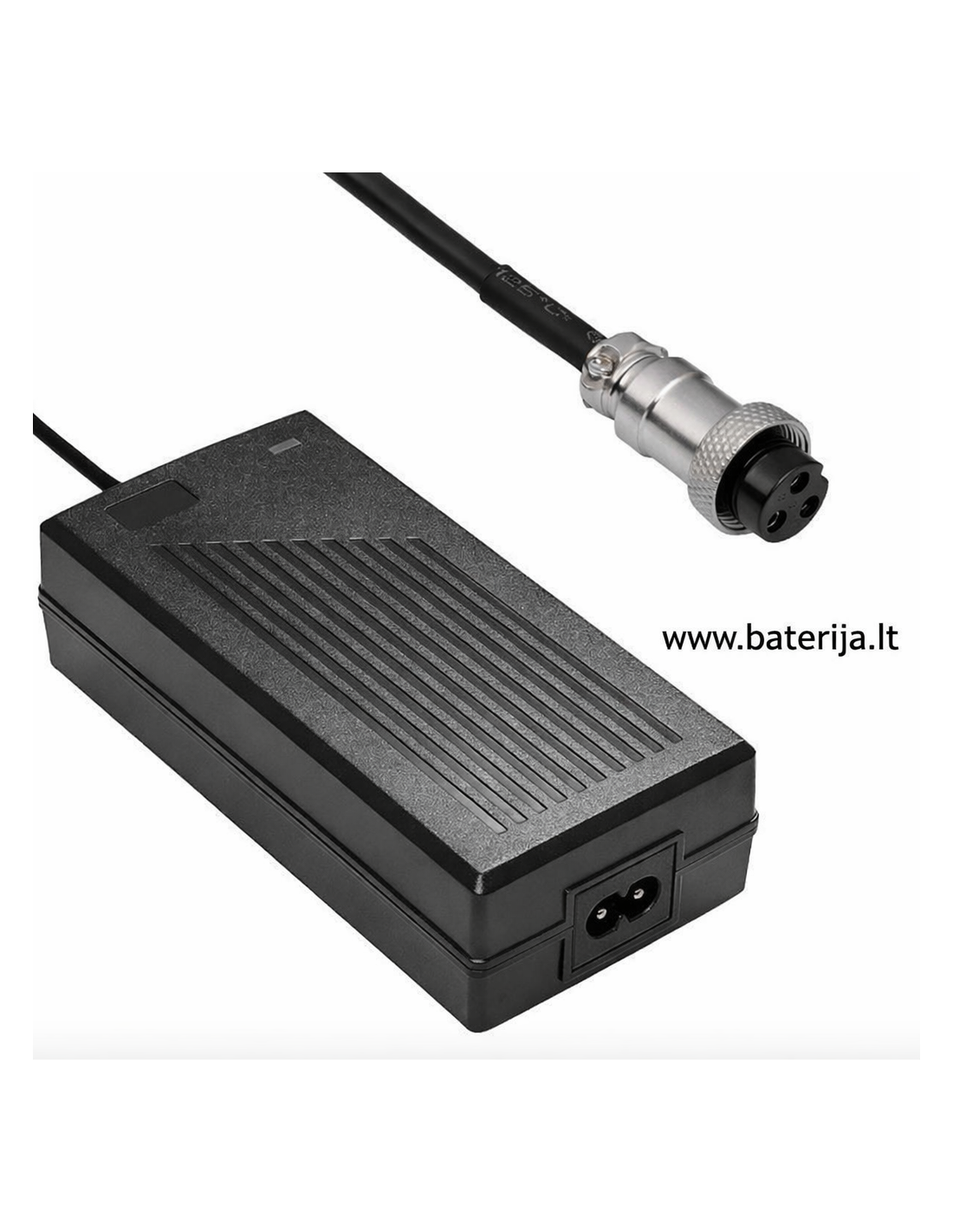

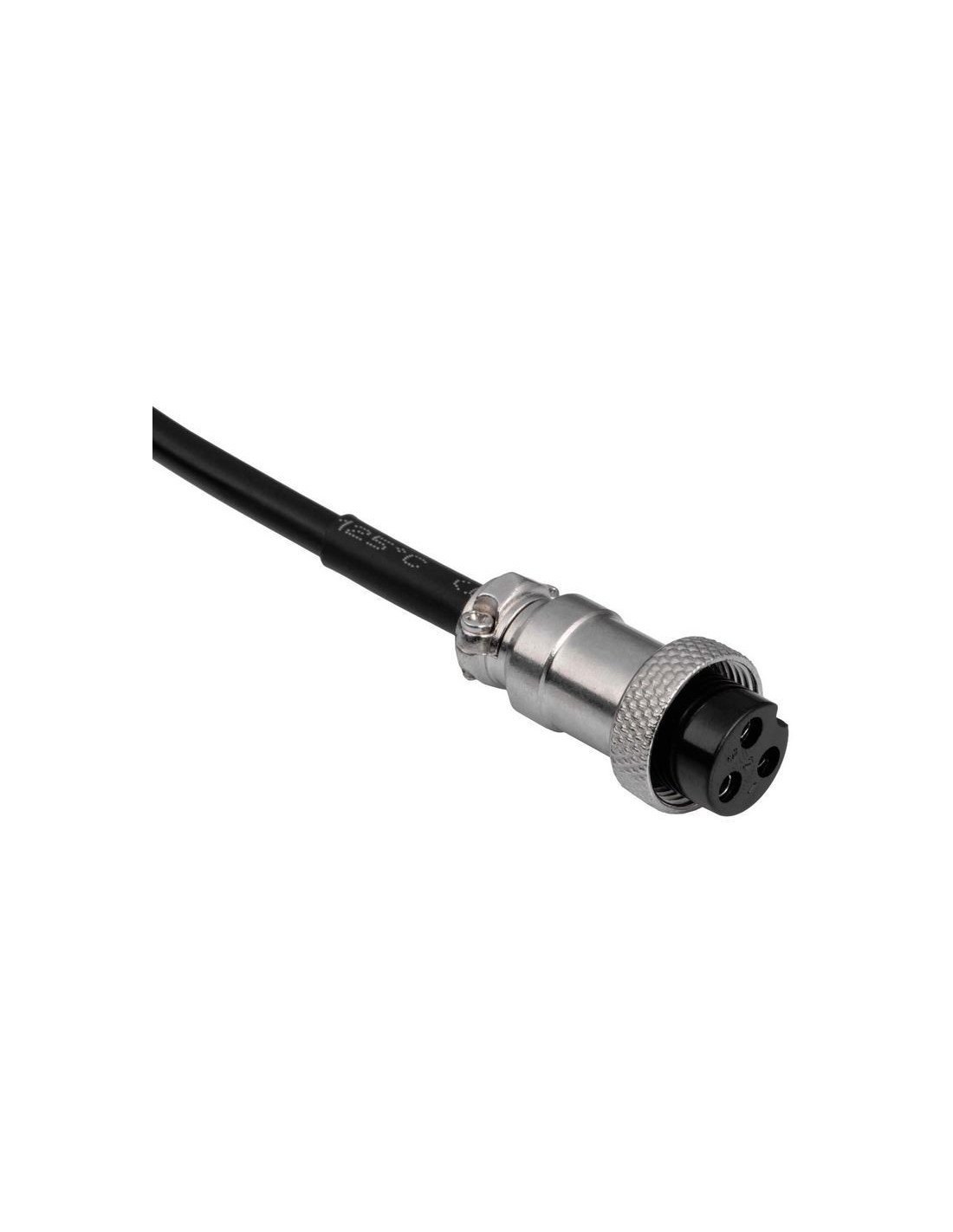

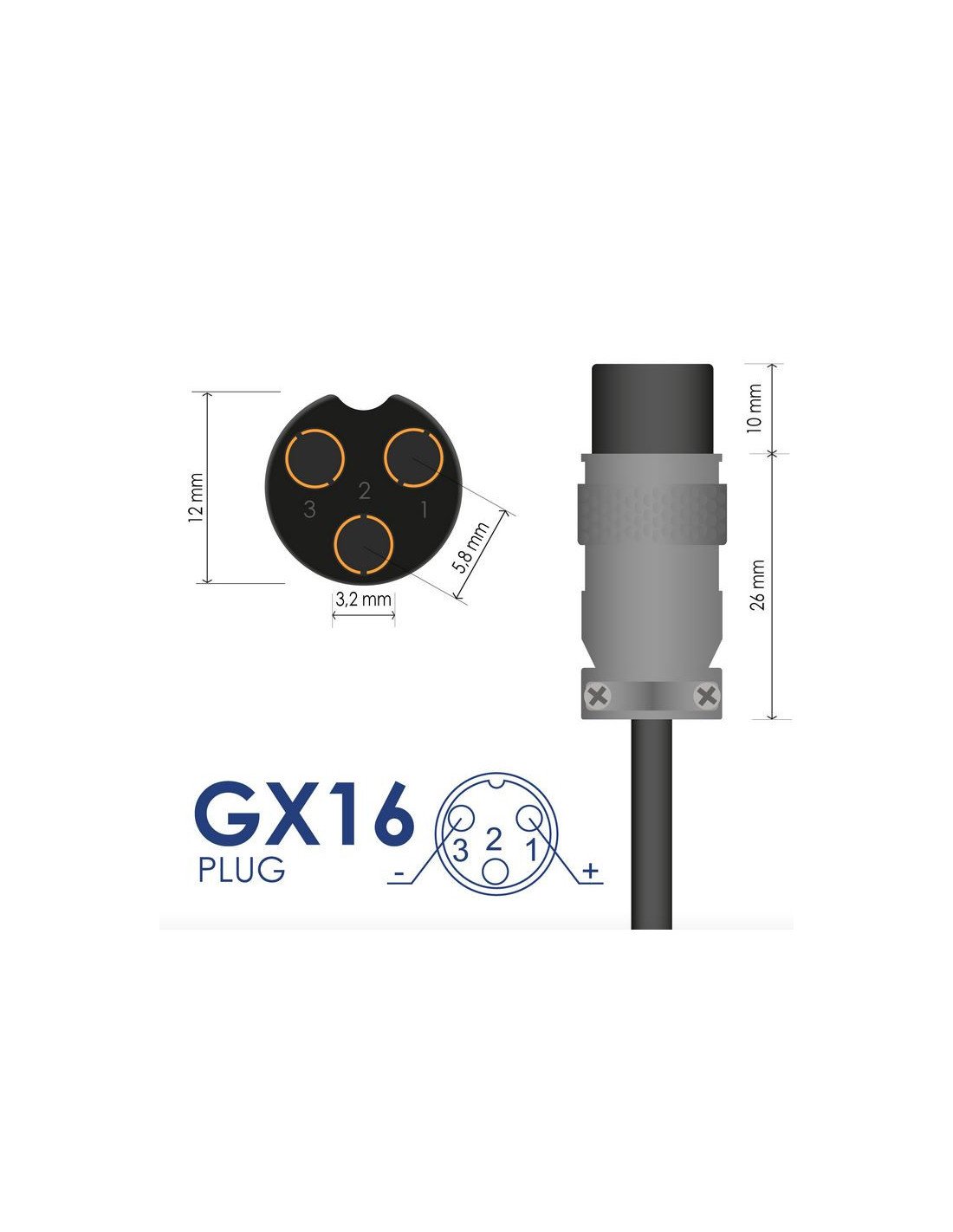

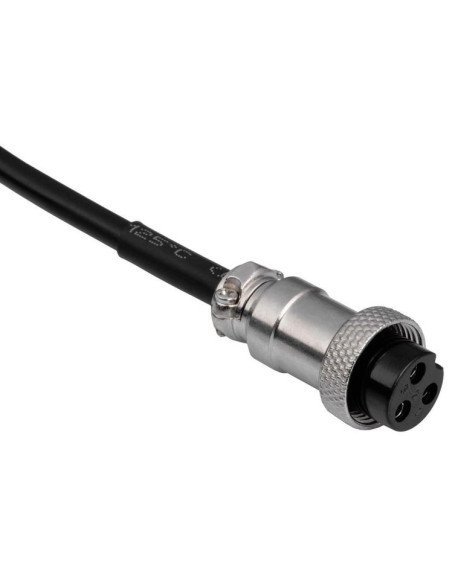

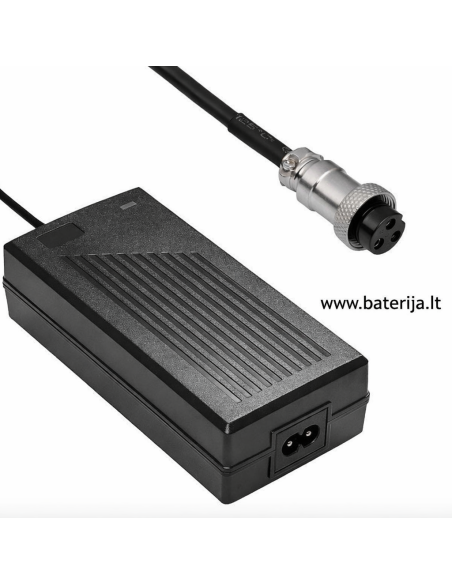

Akyga® is a 42 V / 2 A AC charger designed for 36 V lithium battery packs used in electric bicycles and electric scooters. The device operates from a 100–240 V AC mains supply and uses an IEC C8 (“figure‑8”) power inlet. The 1 m output cable is terminated with a GX16 (3‑pin DIN) connector, known for its mechanical durability and low contact resistance.
The charger provides 42.0 V DC at 2 A, delivering up to 84 W of charging power. This voltage level is standard for 10‑cell (10S) lithium battery packs commonly used in 36 V e‑bike and e‑scooter systems. The unit offers >80 % efficiency and includes a dual‑color LED indicator showing charging progress and completion.
The housing is made of ABS plastic, protection class IP20, and the charger complies with CE, RoHS and REACH standards. Integrated protections include OVP, OCP, OPP, and SCP, ensuring safe operation with lithium batteries. The product is supplied in an eco‑friendly EcoBox package.
The charger is compatible with many 36 V electric bicycles and scooters, including Haibike, Merida, Batavus, Ecobike, Giant, Fischer, Freway, Gazelle and others.
Input 100–240 V; input current <2.5 A; efficiency >80 %; output 42.0 V DC 2 A; max power 84 W; output cable length 1 m; output connector GX16 (3‑pin DIN) male; input connector IEC C8; protections OVP, OCP, OPP, SCP; protection class II (no grounding); IP20; material ABS; LED dual‑color; MTBF 10000 h; product dimensions 140×59×33 mm; packaging EcoBox; net weight 322 g; gross weight 371 g; compliance CE, RoHS, REACH.
