Saft LS14500 with U tags

Saft LS14500 is a 3.6 V lithium thionyl chloride (Li‑SOCl₂) AA-size battery designed for long-term operation at low currents. Its high energy density (bobbin) construction provides high capacity and very low self-discharge. Used in metering devices (water, heat, gas meters), IoT sensors, backup power and memory backup systems, alarm and security equipment. Under demanding pulse load conditions an additional capacitor may be recommended.

• Voltage: 3.6 V

• Capacity: 2.6 Ah (at 2 mA, +20 °C)

• Energy: 9.36 Wh

• Type: LS14500 (AA size)

• Chemistry: Li‑SOCl₂

• Max. continuous current: 50 mA

• Pulse current: up to 250 mA

• Operating temperature: −60…+85 °C

• Dimensions: Ø 14.55 × 50.3 mm, weight 16.7 g

• Self-discharge: less than 1 % per year (+20 °C)

• Non-flammable electrolyte, hermetic glass-to-metal sealing

• Manufacturer: Saft

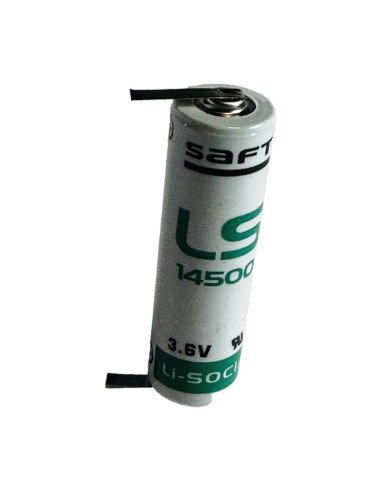

With welded U tags: 3 mm wide strip, approx. 4–6 mm long, on the positive and negative ends. Please contact us for additional requirements.

Ⓝ
