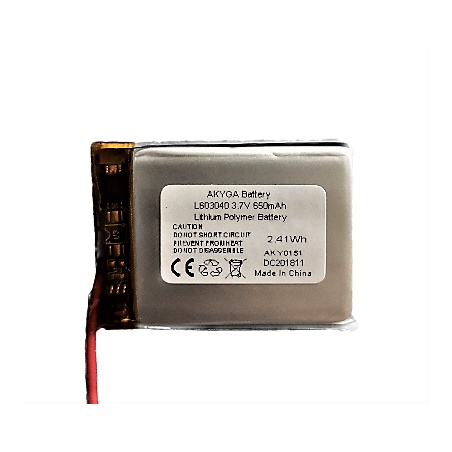

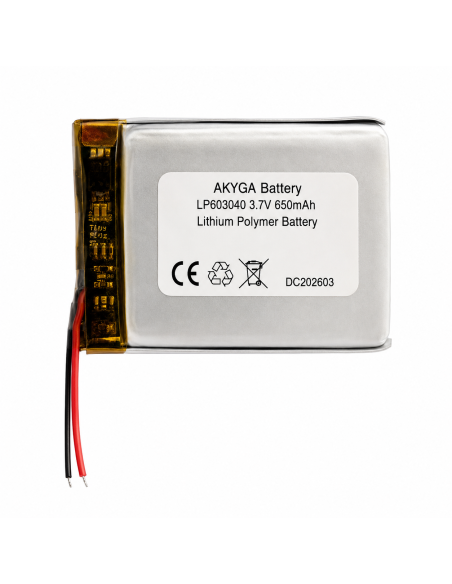

Akyga LP603040 Li-Pol rechargeable battery, 3.7 V, 650 mAh

In stock
€5.00
Tax included From selected delivery, within 2-4 days

Rechargeable Akyga LP603040 lithium-polymer battery designed for compact electronic equipment, measuring instruments, controllers and custom electronics projects. The integrated PCM protects the battery against overcharging and over-discharging.

Before installation, check the device voltage, battery dimensions, connector type and polarity.

Technical specifications:

  • Model: LP603040
  • Technology: Li-Pol
  • Nominal voltage: 3.7 V
  • Operating voltage range: 3.0–4.2 V
  • Charging voltage: 4.2 V ±0.05 V
  • Rated capacity: 650 mAh
  • Typical capacity: 670 mAh
  • Energy: 2.73 Wh
  • Standard charging current: 325 mA
  • Fast charging current: 650 mA
  • Charging cut-off current: 13 mA
  • Standard charging time: 2 hours
  • Fast charging time: 1 hour
  • Nominal discharge current: 325 mA
  • Maximum continuous discharge current: 650 mA
  • Internal resistance: approximately 55 mΩ
  • Cycle life: more than 500 cycles
  • Protection: PCM
  • Cable: 100 ±3 mm, 26 AWG

Product specifications

You might also like

Techniniai duomenys

Chemistry
Lithium polymer (Li-Po)
Manufacturer
AKYGA
Voltage
3.7 V
Capacity
650
Load
325 mA
Pulse discharge
650 mA
Power
2.73 Wh
Package
1 pcs in packing
Connections
wirles with mini tamiya
PCM protection
Yes
Width (W)
30 mm
Thickness (T)
6 mm
Length (L)
40 mm
Country of origin
China
RLP603040
20 Items
