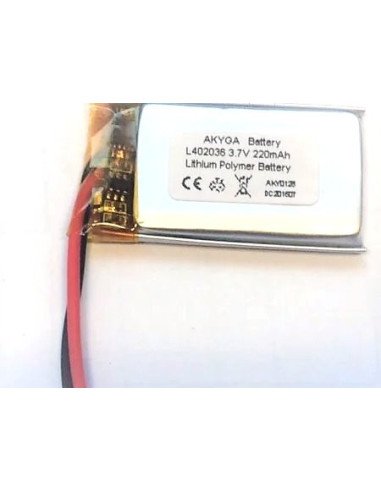

Akyga LP402036 Li-Pol rechargeable battery, 3.7 V, 220 mAh

In stock
€3.70
Tax included From selected delivery, within 2-4 days

Rechargeable Akyga LP402036 lithium-polymer battery designed for compact electronic equipment, measuring instruments, controllers and custom electronics projects. The integrated PCM protects the battery against overcharging, over-discharging and excessive current.

Before installation, check the device voltage, battery dimensions, connector type and polarity.

Technical specifications:

  • Model: LP402036
  • Technology: Li-Pol
  • Nominal voltage: 3.7 V
  • Charging voltage: 4.2 V
  • Capacity: 220 mAh
  • Energy: 0.92 Wh
  • Standard charging current: 44 mA
  • Fast charging current: 110 mA
  • Maximum charging current: 220 mA
  • Nominal discharge current: 44 mA
  • Maximum discharge current: 220 mA
  • Discharge cut-off voltage: 2.75 V
  • Internal resistance: approximately 42 mΩ
  • Cycle life: 300 cycles
  • Protection: PCM
  • Connector: JST SYP-02T-1, 2-pin, 2.54 mm
  • Dimensions: max. 38.5 × 21.0 × 4.5 mm
  • Weight: approximately 6 g
  • Charging temperature: 0–45 °C
  • Discharging temperature: –10–55 °C
  • Storage temperature: –20–45 °C

Product specifications

You might also like

Techniniai duomenys

Chemistry
Lithium polymer (Li-Po)
Manufacturer
AKYGA
Voltage
3.7 V
Capacity
220
Load
44 mA
Pulse discharge
220 mA
Power
0,92 Wh
Type
Rectangular lithium battery
Package
1 pcs in packing
Connections
wirles with mini tamiya
PCM protection
Yes
Width (W)
20 mm
Thickness (H)
4 mm
Length (L)
36 mm
Country of origin
China
RLP402036
