- Manufacturer
- AKYGA
- Chemistry
- Lithium polymer (Li-Po)
- Voltage
- 3.7 V
- Capacity
- 1200 mAh
- Load
- 240 mA
- Type
- Rectangular lithium battery
- Package
- 1 pcs in packing
- Connections
- wire with connector
- PCM protection
- Yes
- Width (W)
- 31 mm
- Thickness (T)
- 10.5 mm
- Length (L)
- 40.5 mm
- Country of origin
- China
- Standard Discharge Current
- 1200 mA
- Energy
- 5.04 Wh

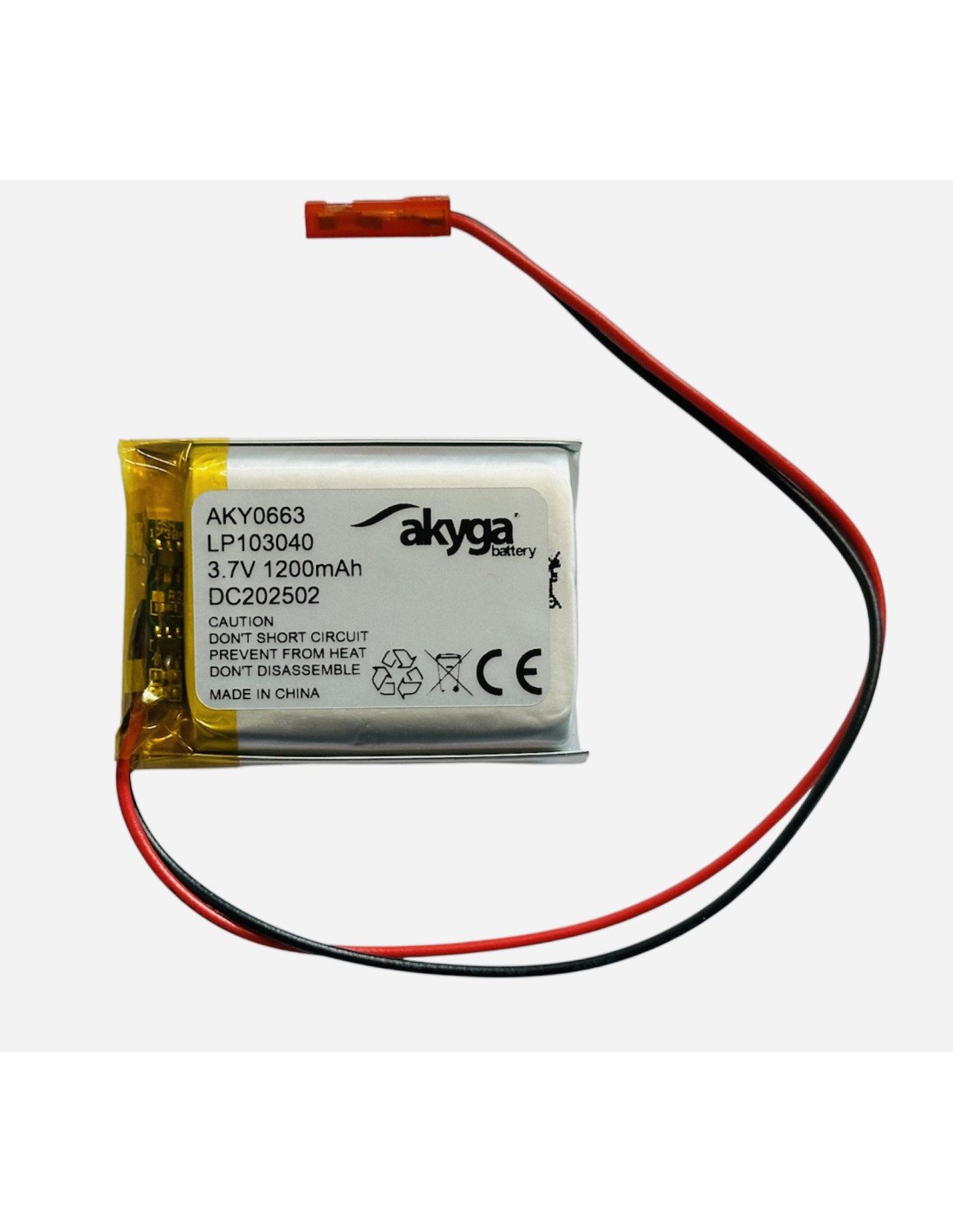

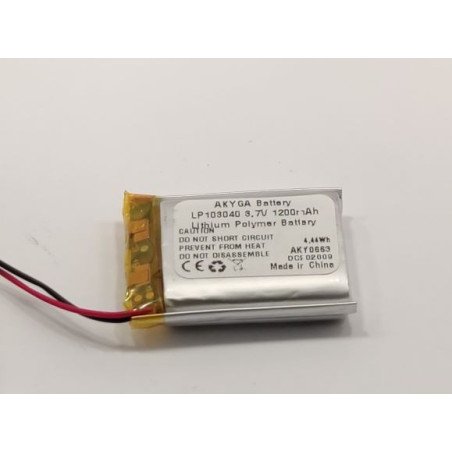

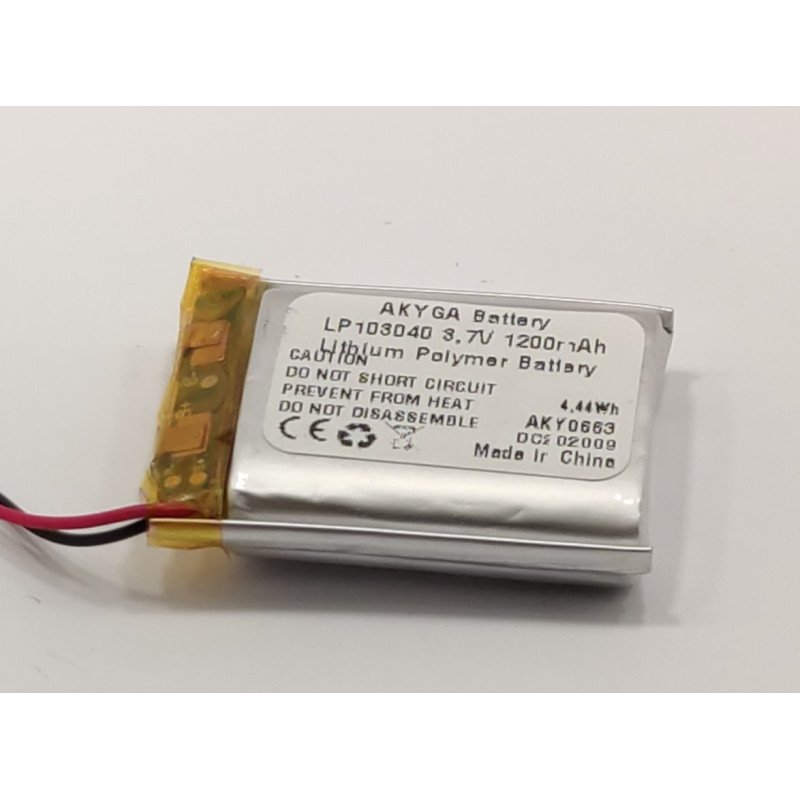

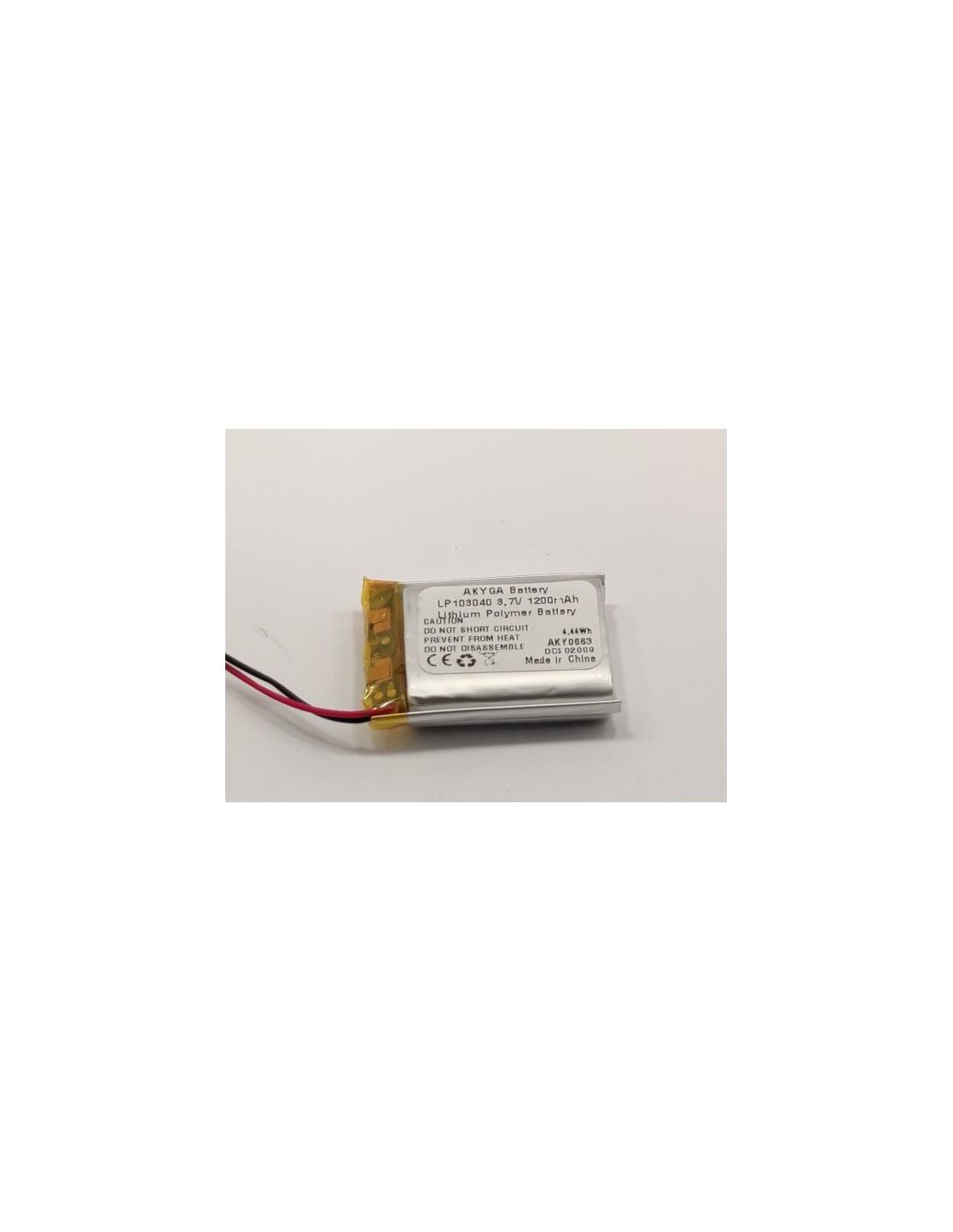

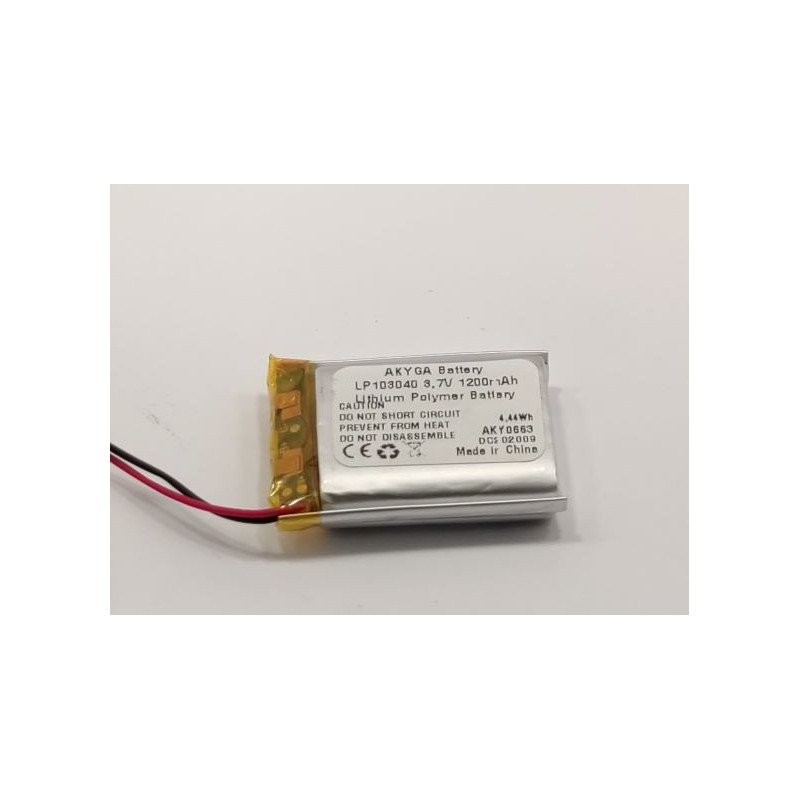

Akyga Li-polymer battery (103040) 1200 mAh 3.7 V
Akyga LP103040 – rechargeable lithium polymer (Li-Po) flat battery with a protection circuit module (PCM) and wires with a JST SYP connector (2 pins, 2.54 mm pitch). Suitable for sensors and portable devices.
The protection board guards the battery against overcharge, over-discharge and short circuit. Charge it only with a Li-ion / Li-Po charger up to 4.2 V.

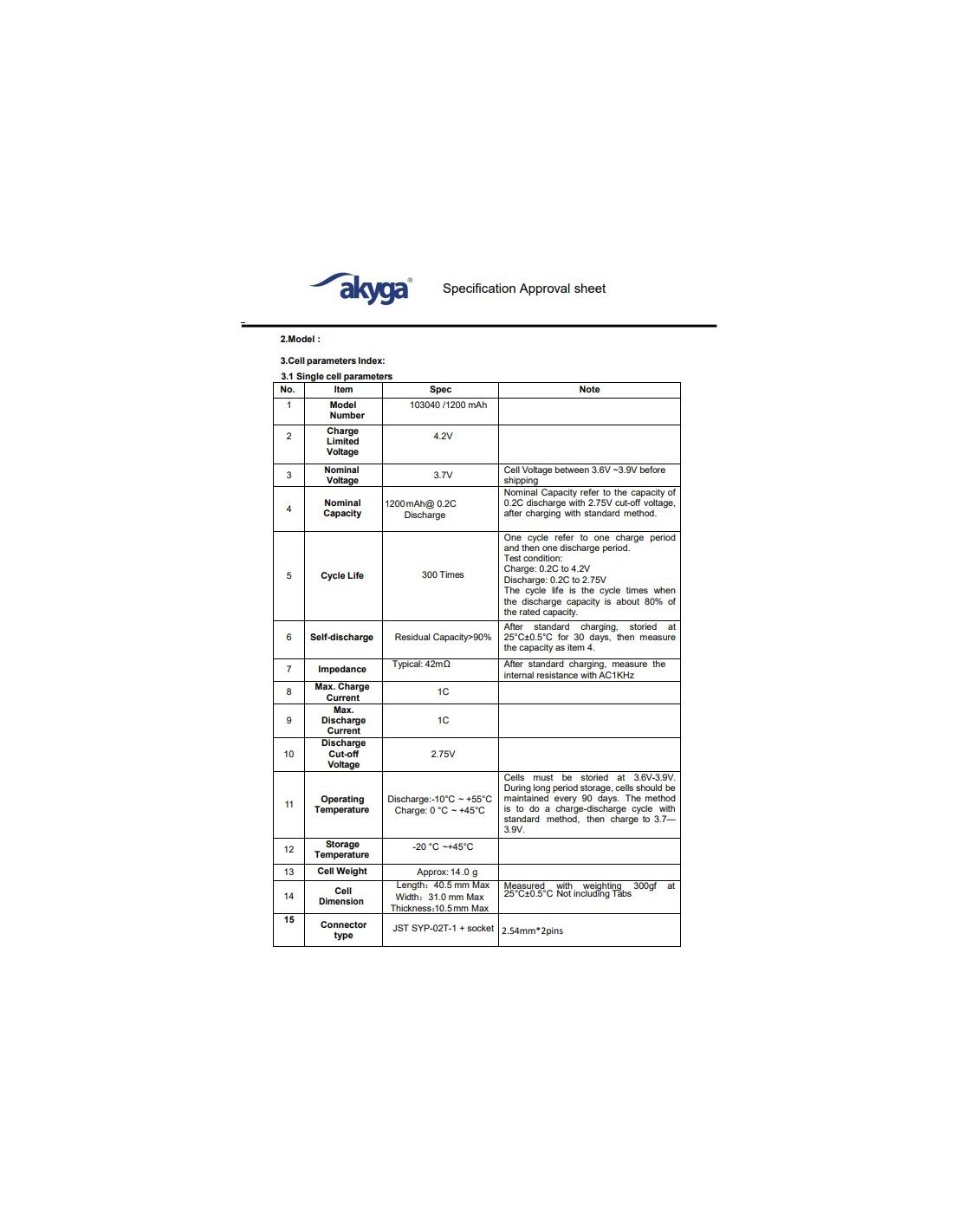

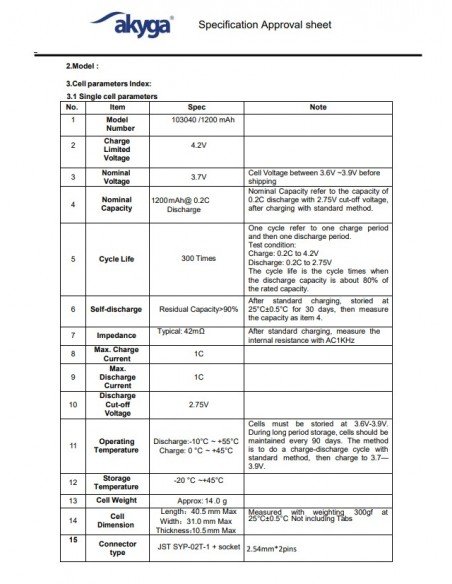

Technical data (manufacturer):
Nominal voltage: 3.7 V
Capacity: 1200 mAh (0.2C discharge)
Energy: 4.44 Wh
Charging voltage: 4.2 V
Charging current: maximum 1C (1200 mA)
Discharge current: continuous, maximum 1C (1200 mA)
Discharge cut-off voltage: 2.75 V
Internal resistance: typical 42 mΩ
Dimensions: 40.5 × 31.0 × 10.5 mm (maximum, without tabs)
Weight: approx. 14 g
Operating temperature: charge 0…+45 °C, discharge −10…+55 °C
Cycle life: 300 Ⓝ
