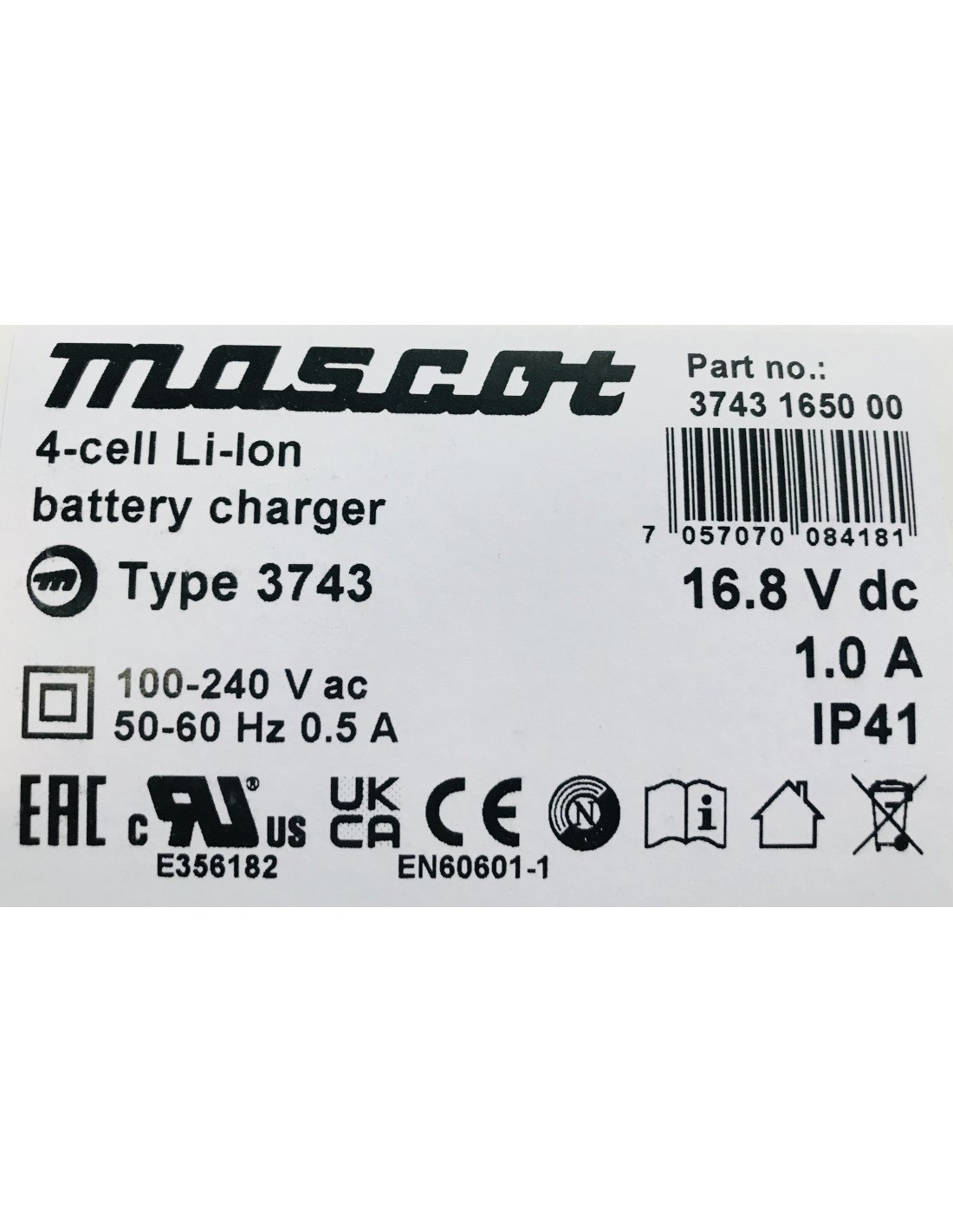

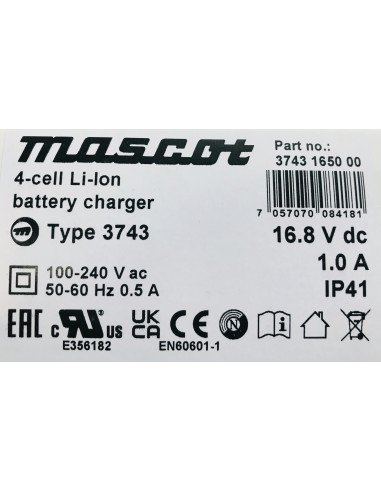

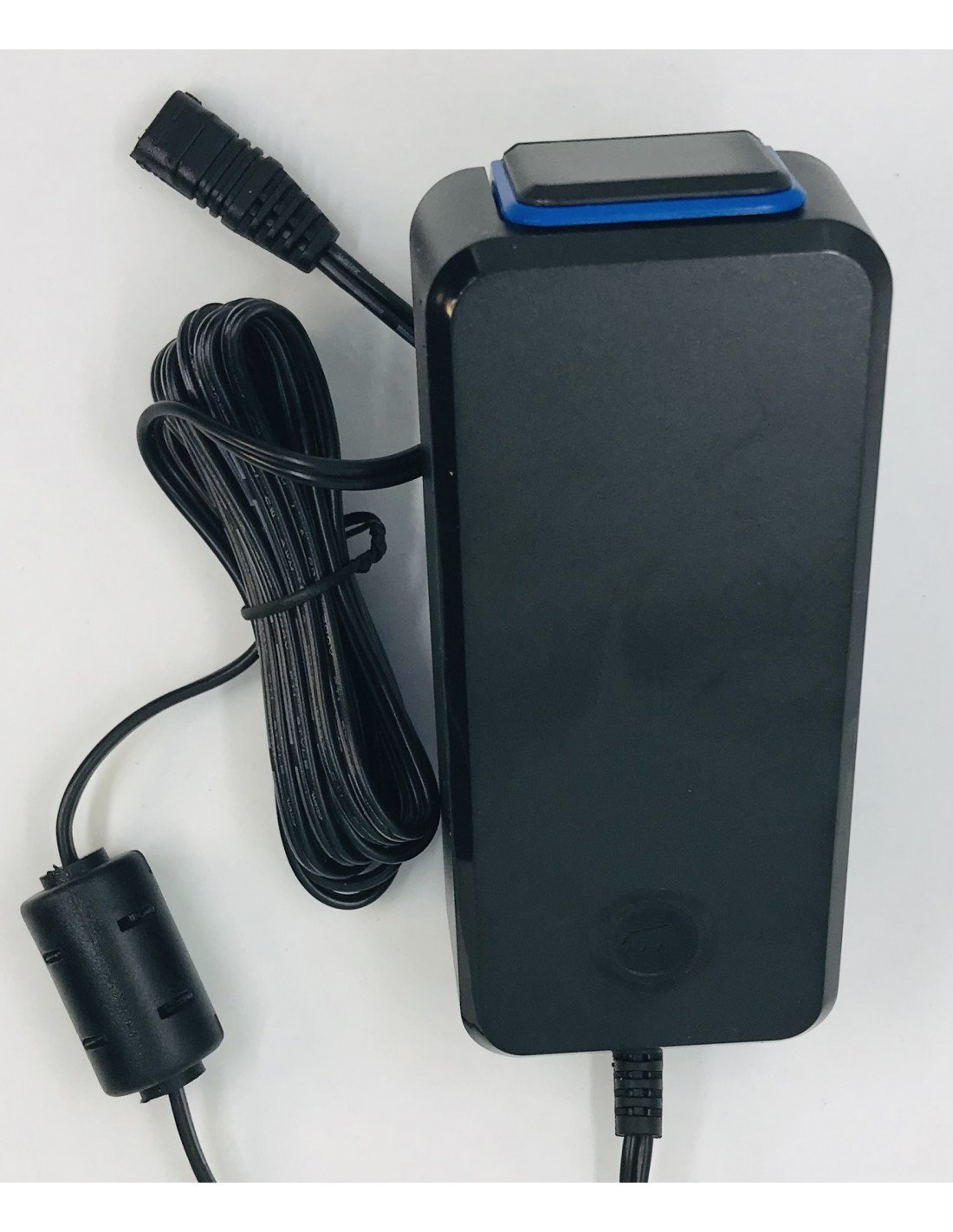

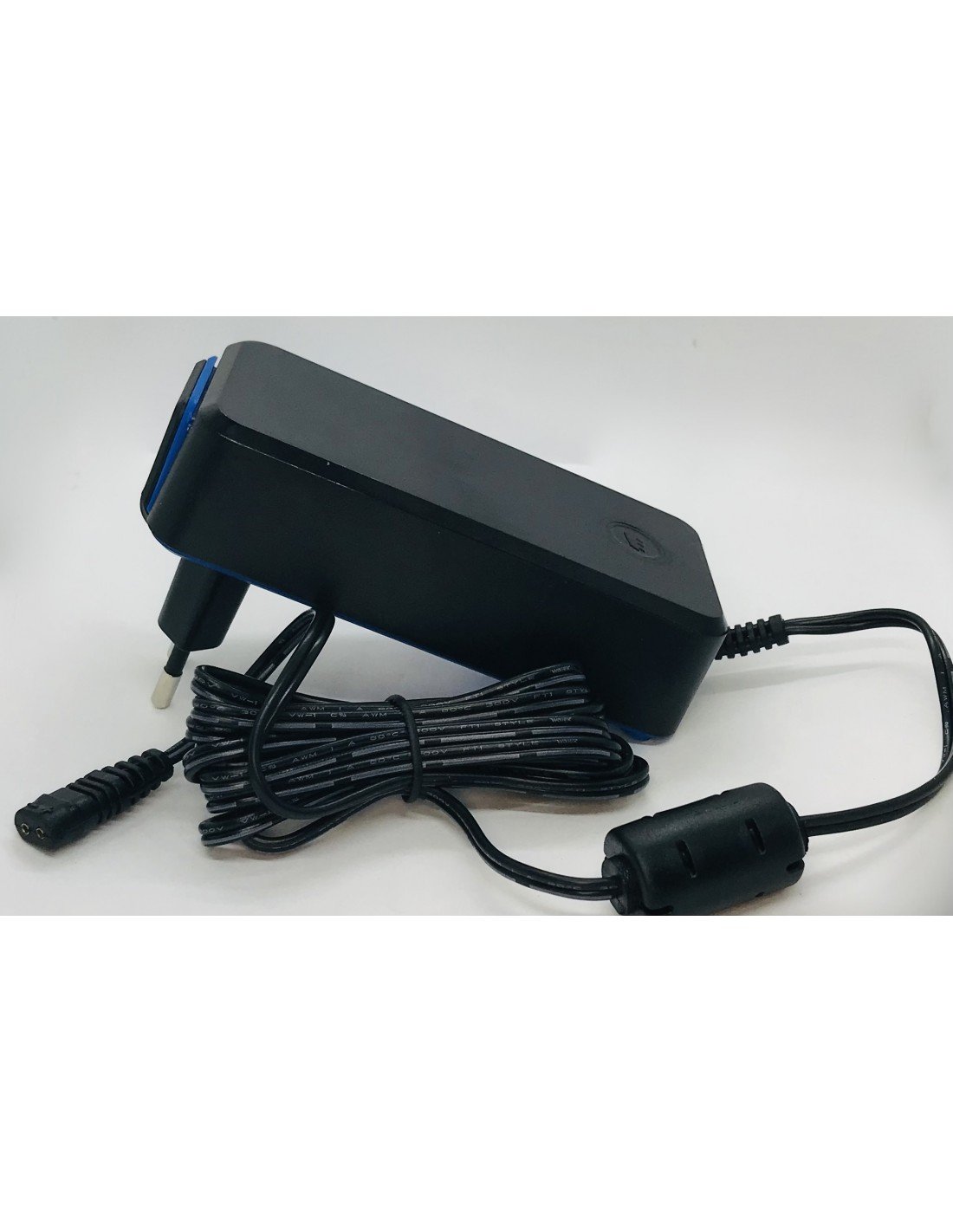

Mascot li-ion 4S cell 16,8 V 1 Ah

4 cell Mascot charger designed for lithium battery packs with integrated PCM/BMS protection systems. Suitable for safe and reliable charging of professional Li-Ion battery applications.

The charger features advanced 3-stage charging control with automatic current detection and charge termination functions. It also supports wake-up mode and low current recovery charging for deeply discharged batteries.

Integrated protection systems help prevent damage caused by reverse polarity and short circuit conditions. Error states are indicated by status signaling.

Wide universal AC input range of 90–264V allows operation in different countries and power systems.

Connectors must be ordered separately according to the battery application. 220V AC power cable is included.

The charger complies with medical safety and EMC standards, making it suitable for professional and healthcare environments.

Technical and Safety Features

• Designed for 4 cell Li-Ion battery packs
• Compatible with PCM / BMS protection systems
• Advanced 3-stage charging control
• Deeply discharged battery wake-up function
• Low current recovery charging
• Reverse polarity protection
• Short circuit protection
• Error indication
• Universal AC input: 90–264V
• 220V AC power cable included
• Connectors sold separately

Certifications

• Medical certified
• EN 60601-1 ed. 3.1
• EN 60601-1-11
• EN 60601-1-2 ed. 4
• UL approved
